TECHNICAL SPECIFICATIONS & FEATURES
WARNING:
- Always ensure batteries are inserted with the positive (+) end pointing toward the flashlight head. If incorrectly installed, the flashlight will not work.
CAUTION:
- The flashlight may become warm or hot after extended periods of use, especially the head.
TECHNICAL SPECIFICATIONS
-
Physical Properties
- Length: 105mm
- Head Diameter: 25.4mm
- Tail Diameter: 25.4mm
- Weight (without battery): 65gm
- Material: Al 6061-T6
-
Optical Properties
- Light Exit Window: Ø18.5x1.8mm PMMA
- Reflector: Ø20mm Aluminium SMO
- LED: APS
- Luminous Flux: 240Lm
-
Electrical Properties
- Power Source: 1x Rechargeable CR123
- Power: 3W
- Max. Current: 1A
- Charger Input: 230VAC
- Charger Output: 4.5VDC
-
Environmental Properties
- MIL-STD-810G
- IP 68
- Operating Temperature: -20ºC to +55 ºC
- Storage Temperature: -30 ºC to +65 ºC:
OPERATIONS:

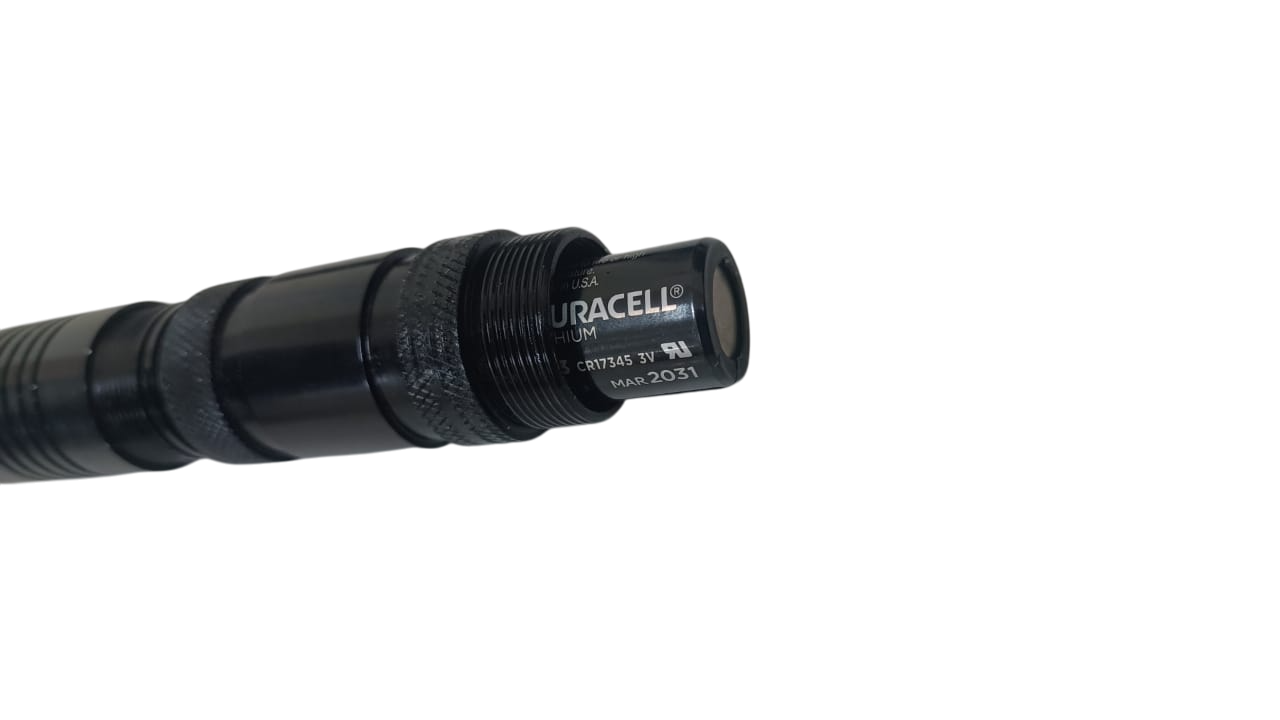

- Insert rechargeable CR123 battery or other compatible batteries by removing the tail.
- Tighten the tail properly, after inserting the battery in correct direction.
- To turn the flashlight on, press down firmly on the black button located at the tail of the flashlight until you hear a click.
- To turn the flashlight off, press down the button firmly again, until you hear a click.
PRESERVATION INSTRUCTIONS:
- Clean the glass surfaces, by blowing away any dirt and dust first. Fingerprints and lubricants can be wiped off with a soft cotton cloth, moistened with lens cleaning fluid or glass cleaner. Always dampen the glass surfaces prior to cleaning, to avoid damaging the window, never clean the glass surface with a dry cloth.
- No maintenance is needed, except to occasionally wipe off with a damp, soft cloth. Use only a water-based cleaner such as glass cleaner, ammonia, or soap and water. Never use any solvent-type cleaner such as alcohol or acetone to clean.
USER LEVEL MAINTENANCE AND REPAIR:
- Inspect and replace the Battery periodically.
- Do not use deteriorated or corroded batteries.
- Inspect battery for rips, tears, or cuts in the housing. If there is any exposed, internal content of the battery, it could potentially affect the operation.
WARRANTY:
- This product is warranted by OEM against manufacturing defects in materials and workmanship under normal use for a 24-month period from date of purchase via OEM.
- For further information or any queries, please reach out to the customer service.
